CONSTRUCTION DOCUMENTS
The mixed-use building design project aims to train and practice architectural techniques, including using Revit and a series of lectures on construction details. The building builds with concrete framing plus a steel framing system (in the glasshouse). The team researches applying traditional bricks, glass bricks on arches, and its detail.
Contribute:
- Architectural design in early design phases
- Material selection
- BIM modeling using Revit + Rhino.inside

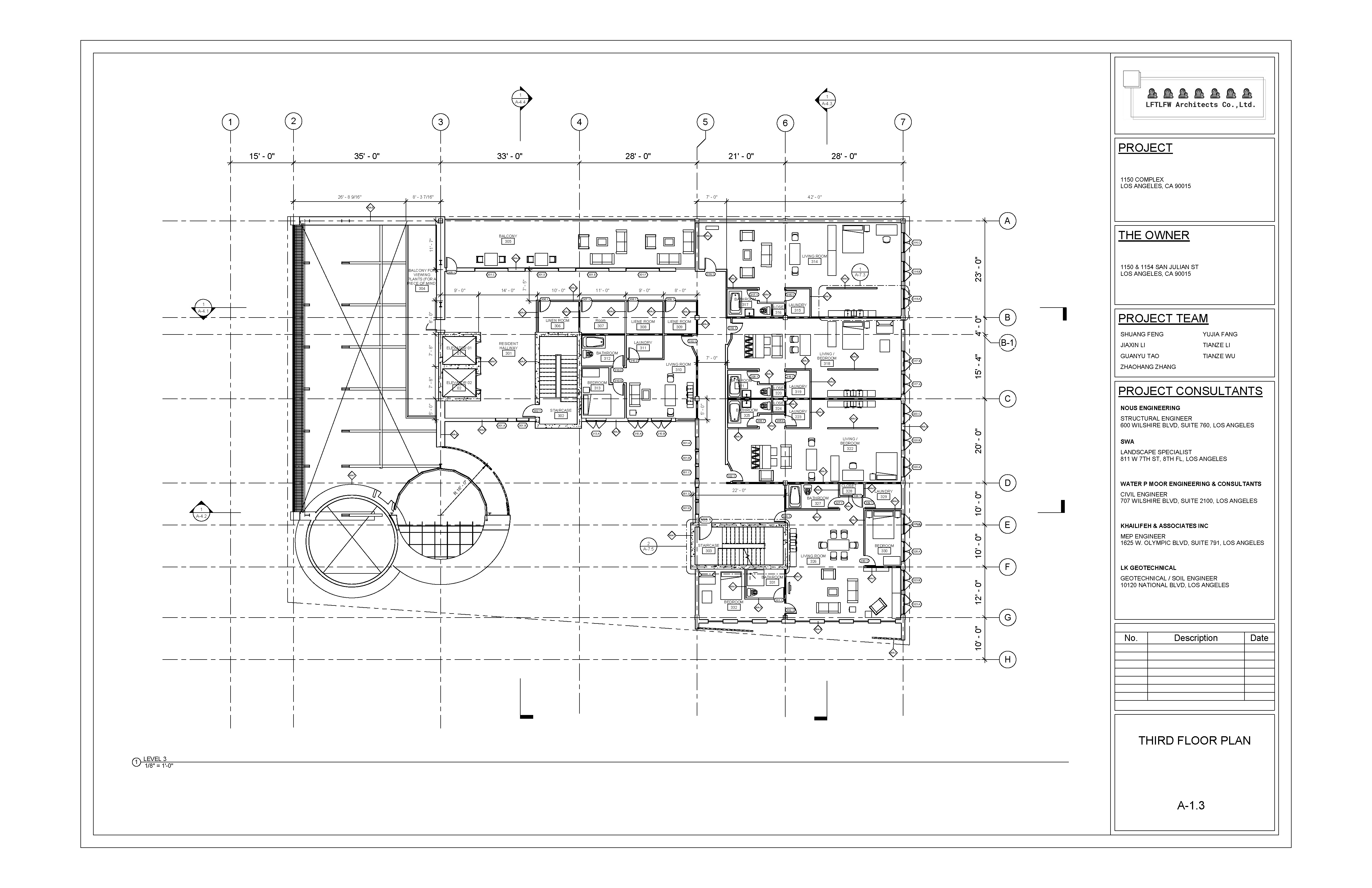

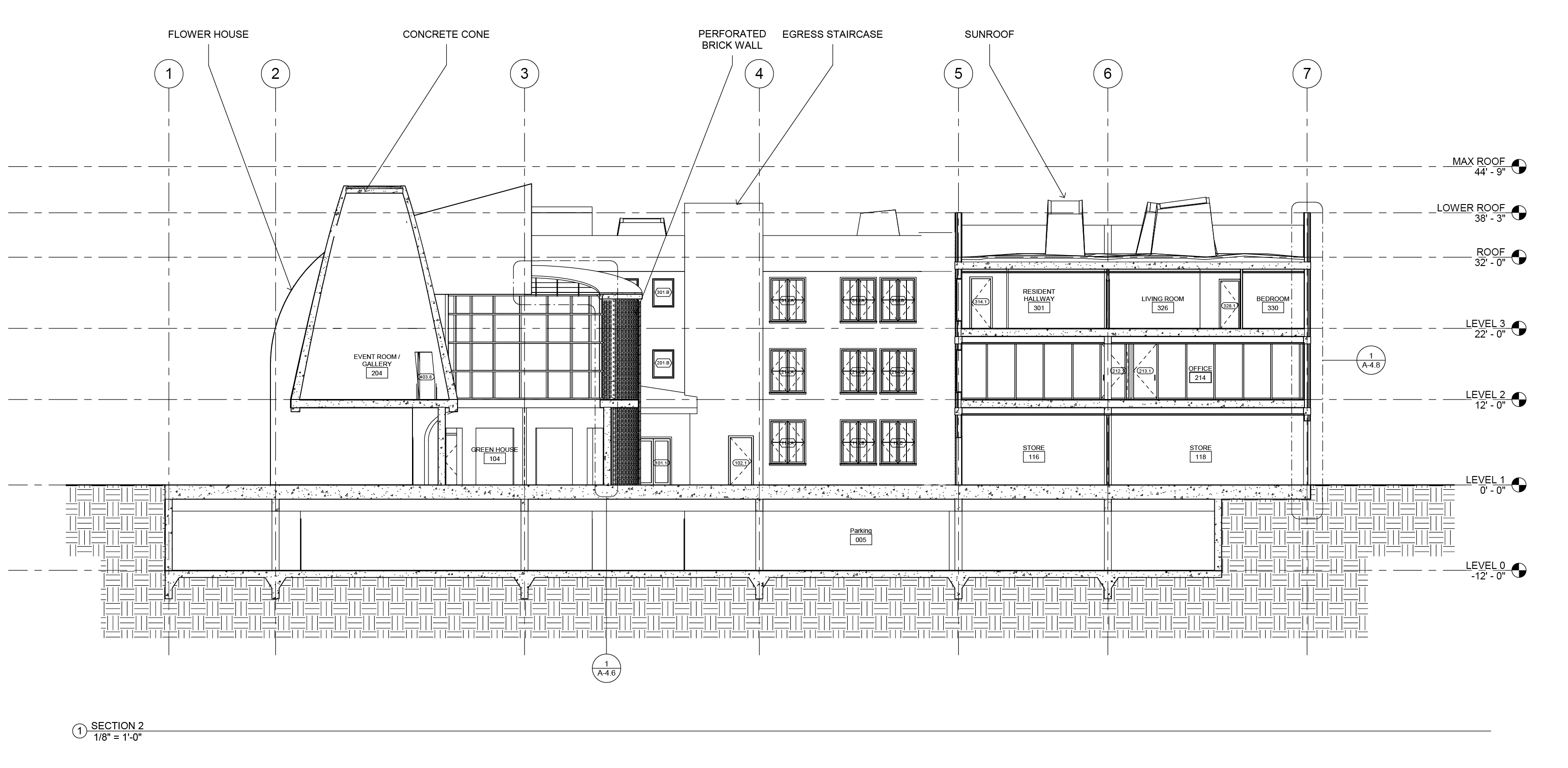

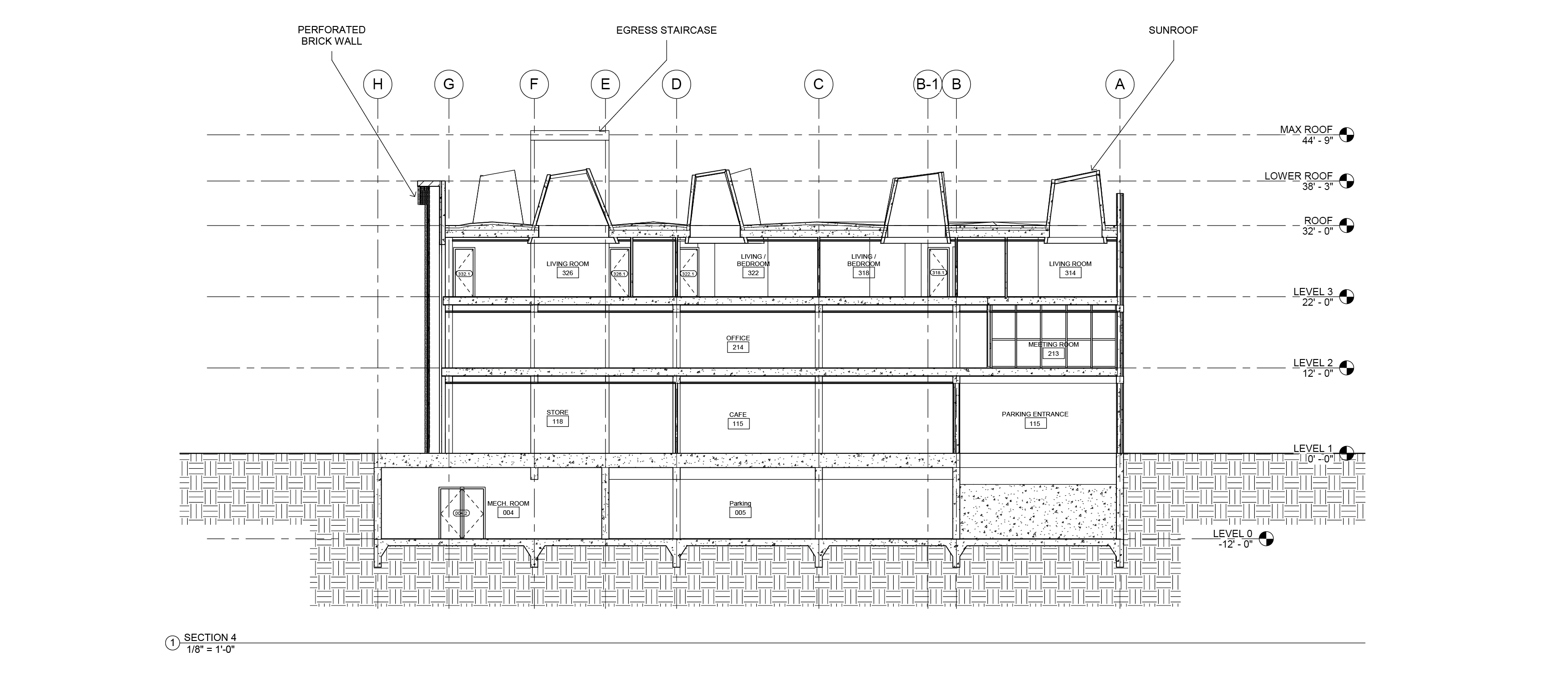

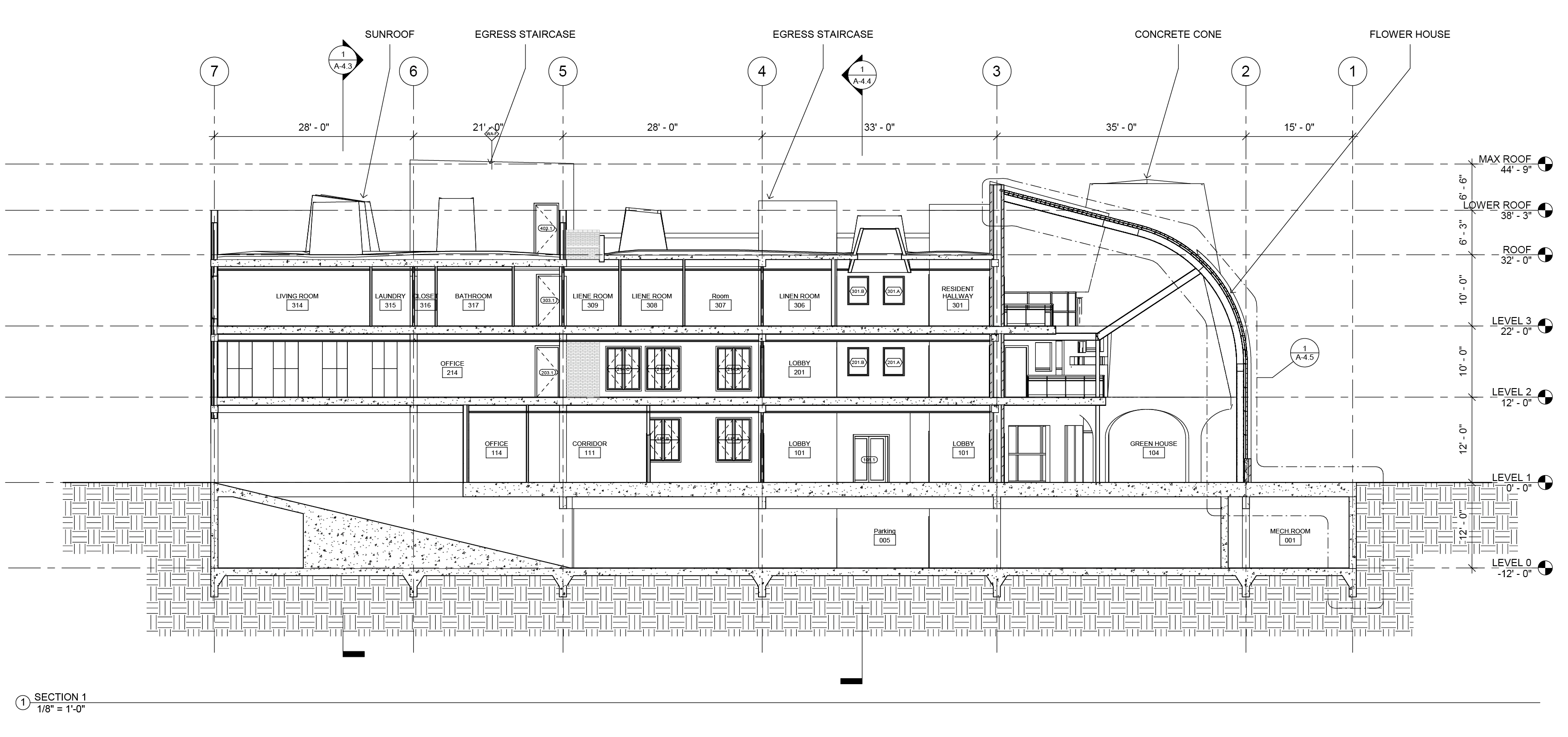

- 4 section drawings
- 1 wall section drawing

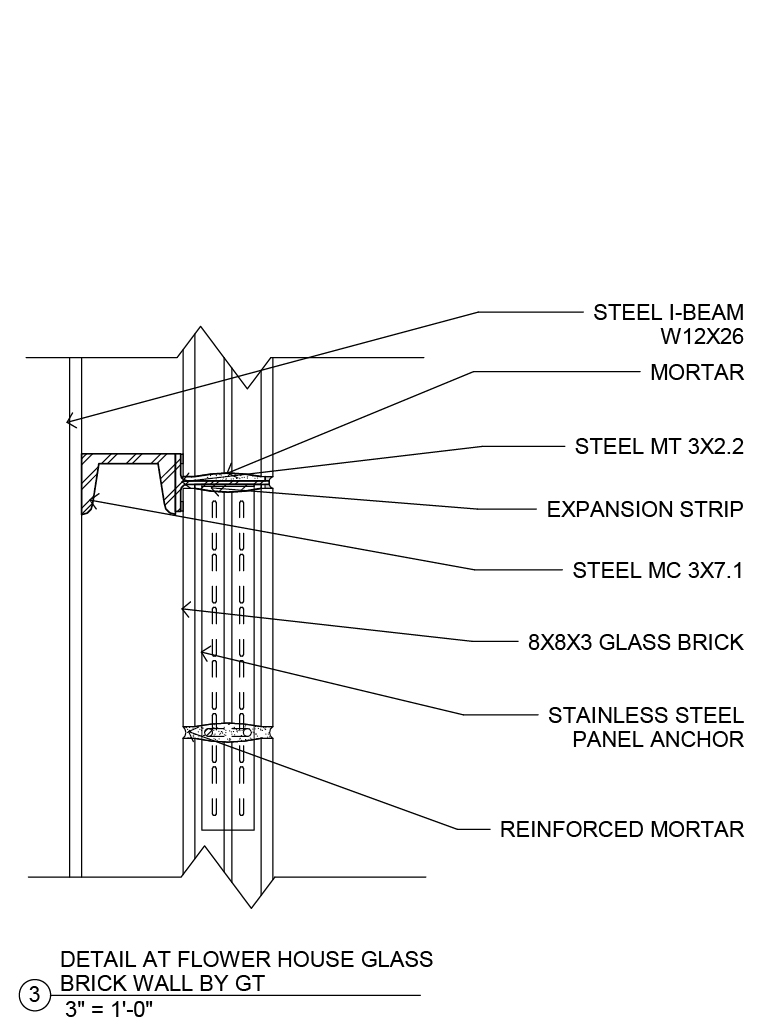

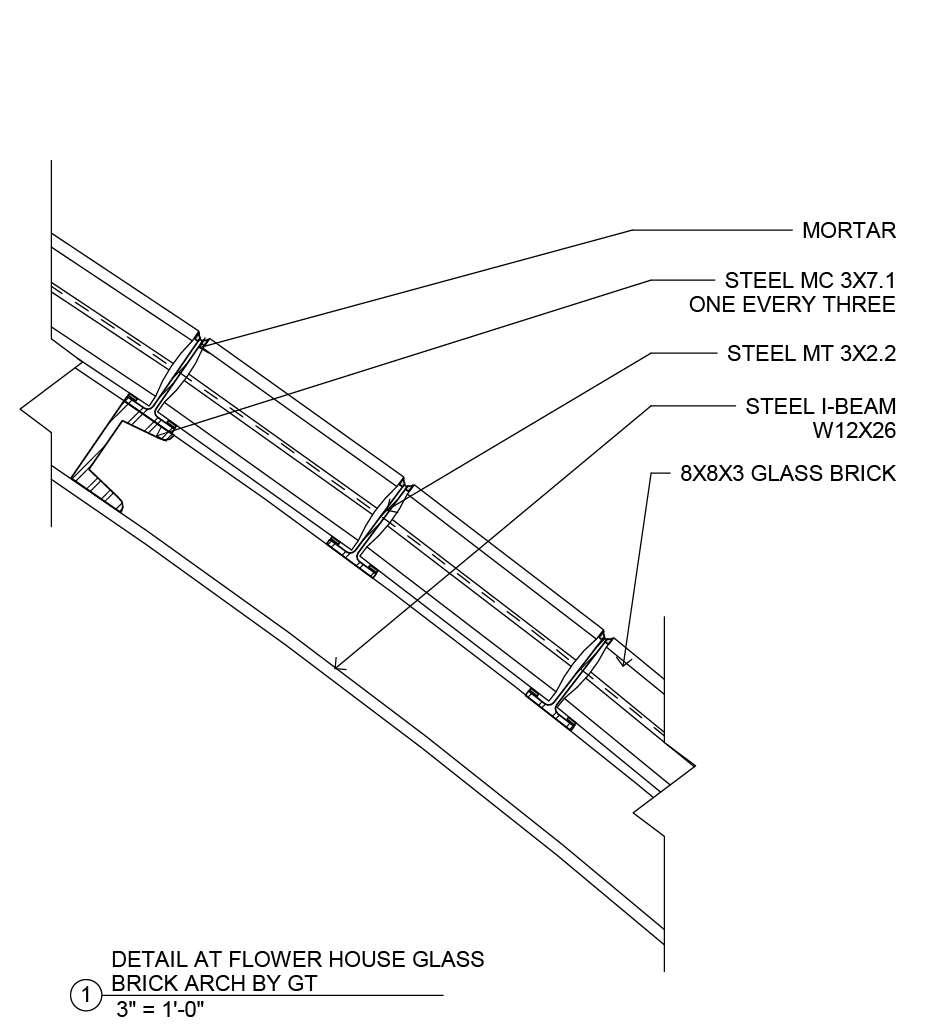

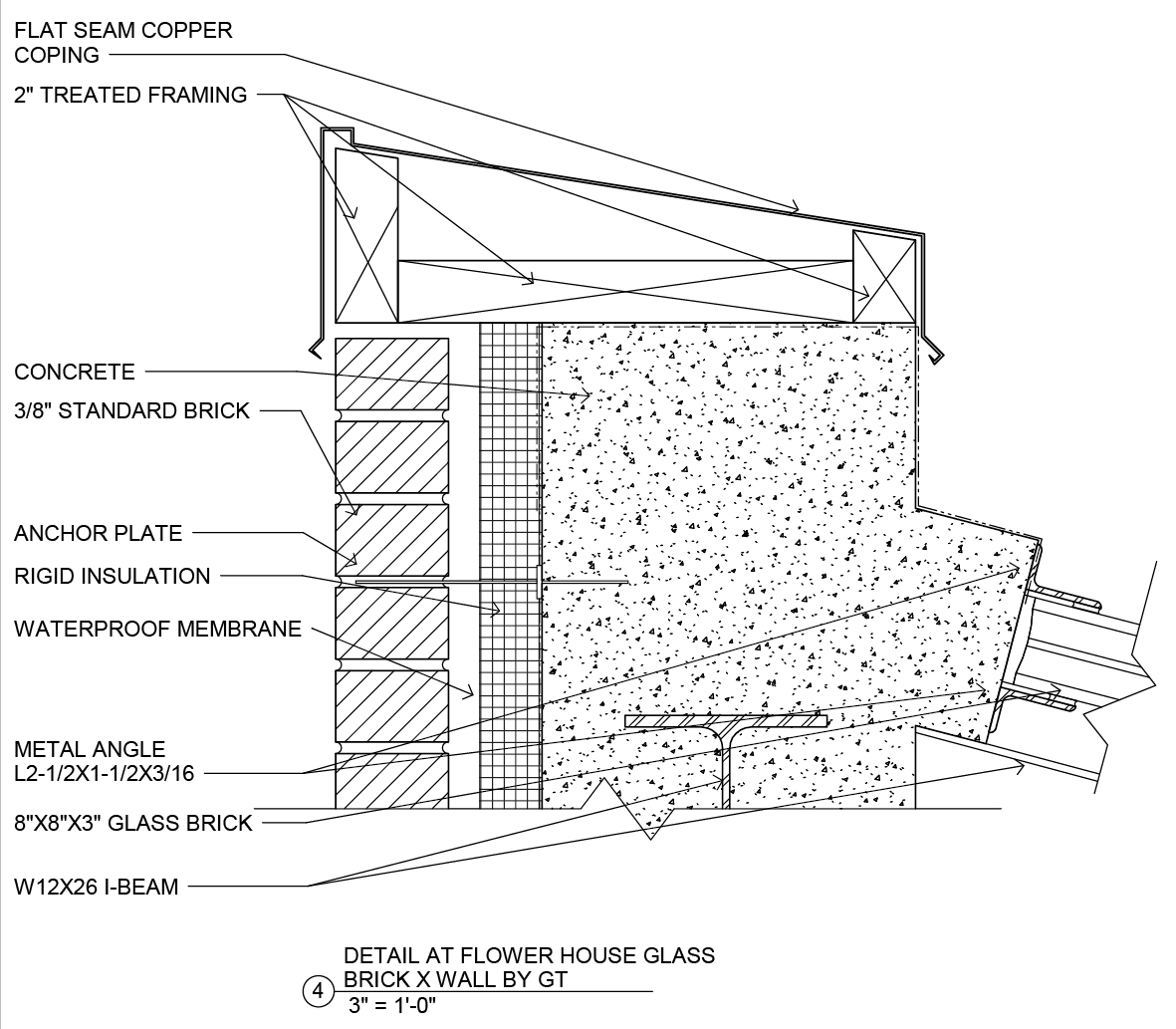

- 4 call-out detail drawings
DOWNLOAD THE DRAWING SET
Year
2021
SCI-Arc 2GB
AS Adv Project Delivery
Instructor:
Pavel Getov
Kerenza Harris
